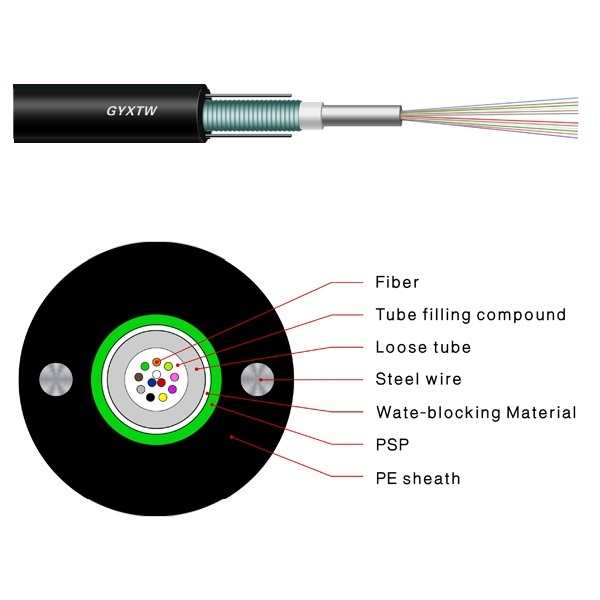

·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·PSP enhancing moisture-proof
·Two parallel steel wires ensure tensile strength
·PE sheath gives excellent UV protection
·Small diameter, light weight and friendly installation
·Long delivery length
GYXTW cable complies with Standard YD/T 769-2010
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤0.36dB/km |
-- |
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850 |
|
|
≥500MHZ·km |
≥500MHZ·km |
|
@1300 |
|
|
≥1000MHZ·km |
≥600MHZ·km |
|
|
Numerical Aperture |
|
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelength λcc |
≤1260nm |
≤1480nm |
|
|
|
|
Cable Type |
|
|
|
|
|
|
|
GYXTW-2～12 |
2～12 |
9.0 |
85 |
600/1000 |
500/1500 |
15D/30D |
|
GYXTW-14～24 |
14～24 |
9.0 |
85 |
600/3000 |
1000/3000 |
15D/30D |
|
GYXTW-2～12 |
2～12 |
10.0 |
105 |
1000/3000 |
1000/3000 |
15D/30D |
|
GYXTW-14～24 |
14～24 |
10.0 |
105 |
1000/3000 |
1000/3000 |
15D/30D |
|
GYXTW-26～36 |
26～36 |
14.0 |
190 |
1000/3000 |
1000/3000 |
15D/30D |
|
GYXTW-38～48 |
38～48 |
15.0 |
216 |
1000/3000 |
1000/3000 |
15D/30D |
Storage/Operating Temperature : -40℃ to + 70℃
